LED Brite Strip

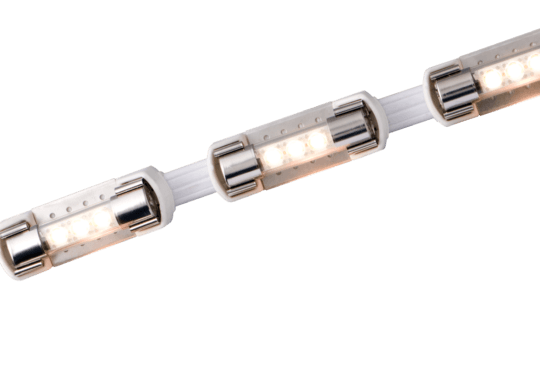

LED Brite Strip is a flexible light strip featuring LED efficiency and field cutability. With a bend radius of 2 1/4″ / 5.75 cm (inside or outside), can evenly illuminate the tightest of curved surfaces. Even 90 degree corners are simple to do. LED Brite Strip mounts easily with 3M® double sided tape (pre-fixed to the back of each socket) or with simple to use nail clips for added security. Molded festoon bulb sockets located at two, three and four bulbs per foot on listed 12AWG wire. Each socket accepts a 0.5 watt LED festoon bulb. Bulbs are rated at 40,000 hour life. LED Bight Strip is dimmable when powered by appropriate LED driver and dimming device.
LBL-24-.5WW LBL-24-.5CW

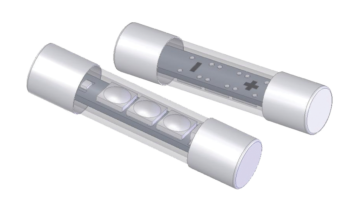

LED FESTOON LAMPS
BL-001/XX

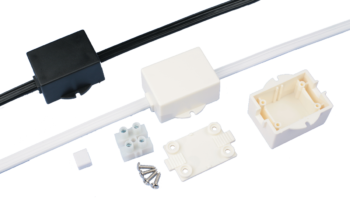

ASSEMBLY KIT
BL-003/XX

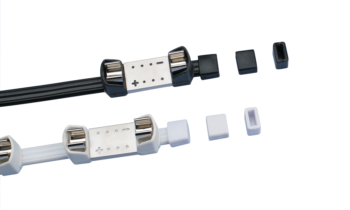

END CAP
LW-12G/XX

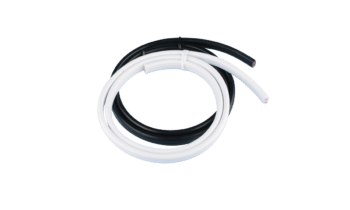

LEAD WIRE
This product is suitable for the following applications:

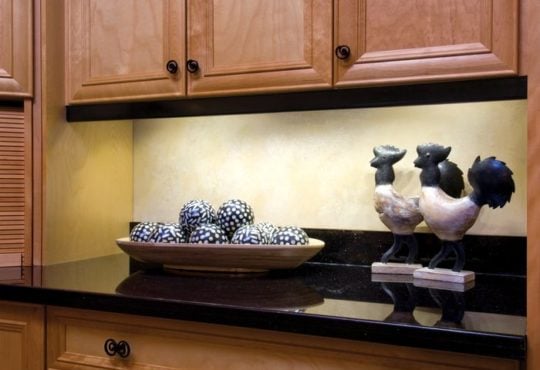

• Under cabinets
• Above cabinets
• Showcase lighting

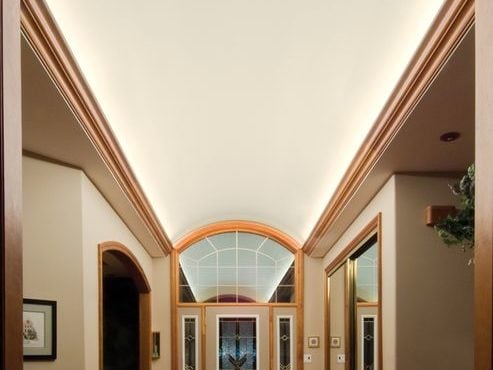

• Cove lighting
• Indirect lighting
• Sign back lighting
• Shelf lighting
• Decorative accents
