LED Panel Lights are designed for residential and commercial suspended grid ceilings in 1’x4′, 2’x2′ and 2’x4′ sizes. LED Panel Lights are used for office lighting, basement lighting, light box and sign back-lighting, gym lighting, school lighting, hospital lighting, and more!
Replace existing fluorescent troffer light fixtures or use for new construction applications. LED Panel Lights deliver a smooth, flawless wall of illumination without visible bulbs or hot spots. Bright and powerful—the DLC 4.0 Standard series with 100 – 120lm/watt and the DLC 4.0 Premium with 125 -140lm/watt and output of up to 7,800 lumens. The energy-efficient, cULus Listed LED panel operates within a wide 120-277V AC range, has a sturdy anodized aluminum alloy frame with white finish and 3mm PMMA, anti-yellowing lens. Each panel includes a UL-recognized constant-current driver with 0-10V dimming and terminal block connections of easy installations. Mount with our LED Panel Light suspension kit, surface mount kit or in an existing compatible location.
Available in 3000K, 4000K and 5000K color temperatures.
|Electrical||120V AC, 347V AC|
|Power Factor||0.90 Non-Flicker, 40W/60W|
|LEDs||High bright SMD2835|
|Number of LEDs||PL-2X2-40W-XX = 192
PL-1X4-40W-XX = 192
PL-2X4-60W-XX = 336
PLP-2X2-40W-XX = 192
PLP-1X4-40W-XX = 192
PLP-2X4-60W-XX = 384
|LED Life||50,000 hours|
|CCT||3000K, 4000K, 5000K|
|Lumen Output||PL-2X2-40W-XX = 4400 Lumens PL-1X4-40W-XX = 4400 Lumens PL-2X4-60W-XX = 6600 Lumens PLP-2X2-40W-XX = 5200 Lumens PLP-1X4-40W-XX = 5200 Lumens PLP-2X4-60W-XX = 7800 Lumens|
|Working Temperature||-4°F~112°F (-20°C~+45°C)|
|Storage Temperature||-13°F~149°F (-25°C~+65°C)|

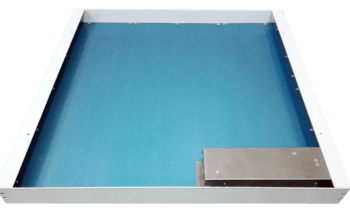

2X2,WX4,1X4 Surface Mount Kit
This product is suitable for the following applications:
- Down Lighting
- Commercial Lighting
- Retail Stores
- General Area Lighting
