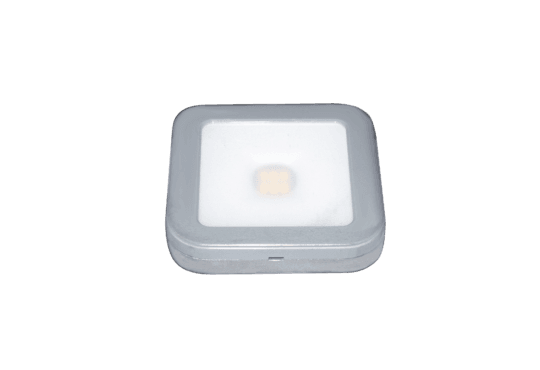

LED Mini Star II
LED Mini Star II is a powerful yet compact LED surface mount fixture designed for use in a wide variety of indoor under cabinet applications. LED Mini Star II contains a replaceable 3.26W LED module made with 6 LG5630 LEDs and is fully dimmable with our dimmable LED power supplies. The fixture delivers more light than a typical 18W Xenon fixture and provides energy savings of more than 80%. The colour temperature of 3000K provides warm, even light. The sleek profile makes the Mini Star II virtually invisible in most applications.
Electrical | 24V DC, 3.26W |
Current | 136mA |
LED Life | 40,000 hours |
LEDs per fixture | 6 |
Lumen Output of LED Module | 137 lumens |
Efficacy | 42 Lumens per Watt |
Fixture Illuminance | 404 lux 17 3/4” (45cm) above surface |
CRI | 83 |
Color Temperature | 3000K |
Operating Temperature | -5°C to 50°C |
Product Material | Aluminum base, PC cover |
Lens | Frosted glass |

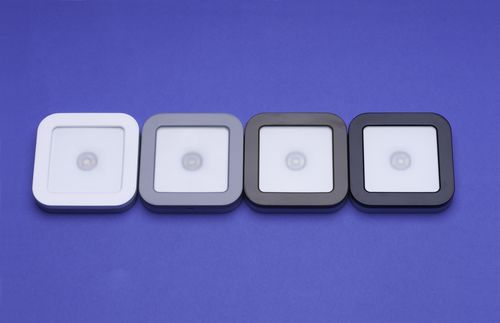

Cover Colors | White, Black, Bronze, Aluminum |
Mounting | Wood screws provided or double sided tape provided |

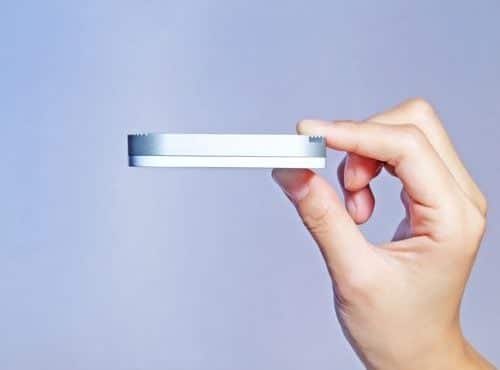

Dimensions | 2 15/16” x 2 15/16” x 1/2” (75mm x 75mm x 13mm) |
Approvals | cETLus |

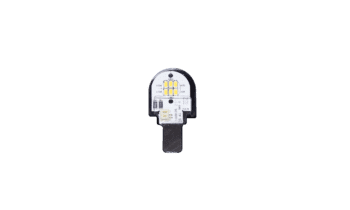

LEDMOD-24-LP
REPLACEMENT MODULE

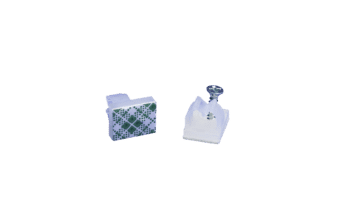

LEDMS-WSC-004
WIRE SCREW CLIPS

LMSII-001
TERMINAL BLOCK AND JUNCTION BOX

LW-18G-CL2
LEAD WIRE
This product is suitable for the following applications:

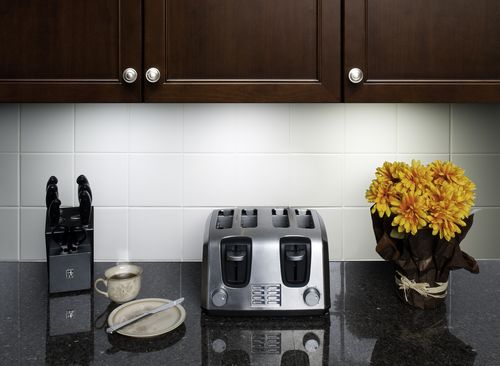

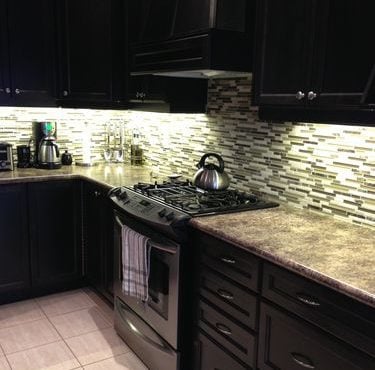

- Under Cabinet Lighting
- Museum Lighting
- Showcase Lighting
