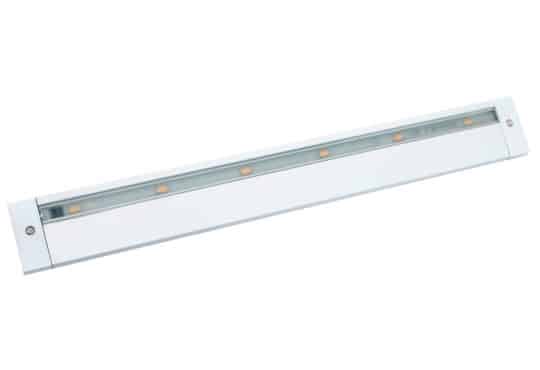

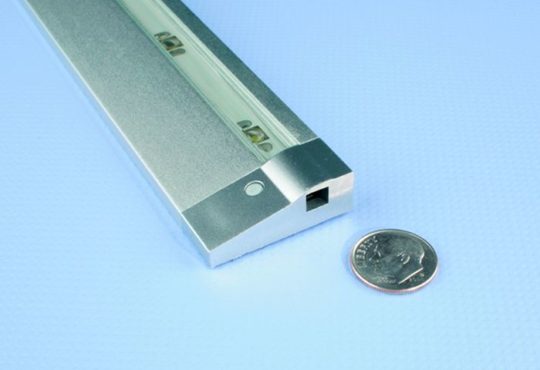

LED Thin Star

LED Thin Star provides excellent LED lighting for under cabinets, showcases, in cabinets, and many other applications. This light weight fixture can be mounted to any surface, is low in power consumption and provides high quality light. LED Thin Star is available in two different lengths which can be joined together providing seamless light in the lengths you require.

Where to buy

Share this product:

LTH-6-YY

LTH-12-YY

Power Consumption

3.5W (Max.)

7.0W (Max.)

Current

0.12A

0.24A

Voltage

24V DC

LED Type

5630

LED Life

40,000 hours

LED Number

6 pcs

12 pcs

LED CRI

> 80

Luminous Flux (lm) (+/-10% tolerance)

155 lm

300 lm

Luminous Efficiency

44 lm/w

43 lm/w

Illumination @ 45cm (+/- 10% tolerance)

345 Lux

594 Lux

CRI

> 80

LED Colors

Warm White ( 3000K +/- 200K)

Fixture Color

Aluminum / Black / White / Bronze

Lens

Clear Glass

Mounting

Double sided tape and wood screws (included)

Size 11 1/8” x 1 3/8” x 7/16”
(281 x 34 x 11mm)
21 7/8” x 1 3/8” x 7/16”
(553 x 34 x 11mm)
Approvals

cETLus

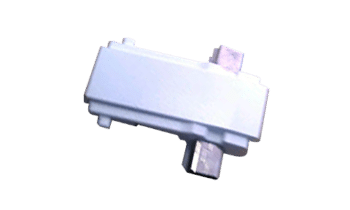

Accessory - JOINER MALE/MALE

LTH-JOIN-XX

JOINER MALE/MALE

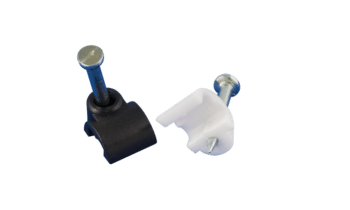

Accessory - WIRE SCREW CLIPS

WSC-004

WIRE SCREW CLIPS

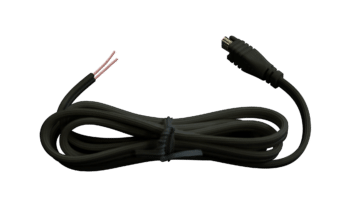

Accessory - POWER SUPPLY CORD 6FT OR 12FT FEMALE (FROM DRIVER)

LTH-001-6YY LTH-001-12YY

POWER SUPPLY CORD 6FT OR 12FT FEMALE (FROM DRIVER)

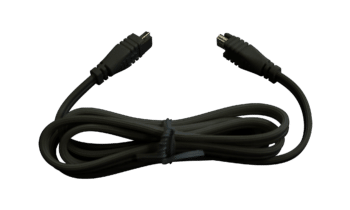

Accessory - CONNECTOR CORD MALE/MALE (BETWEEN FIXTURES)

LTHMM-1.5-YY LTHMM-3-YY LTHMM-6-YY

CONNECTOR CORD MALE/MALE (BETWEEN FIXTURES)

This product is suitable for the following applications:

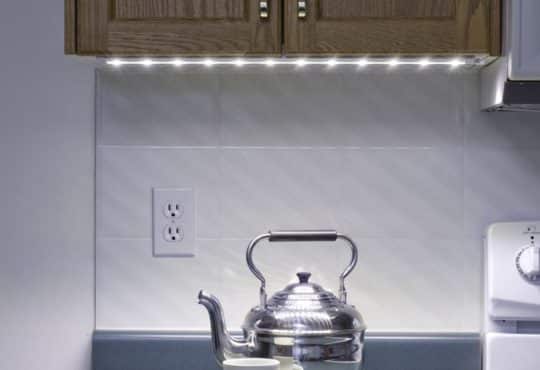

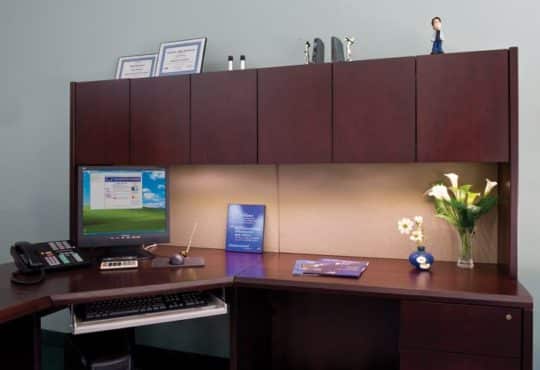

  • Under Cabinet Lighting
  • Museum Lighting

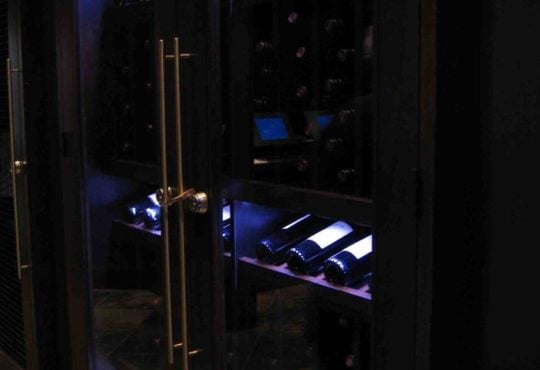

  • Showcase Lighting
