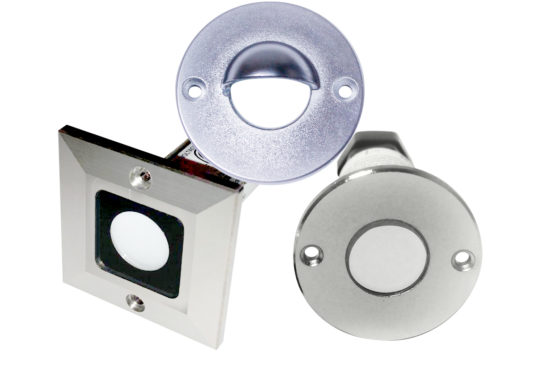

LED Mini Disc / Mini Disc Scoop Light
LED Mini Disc Light is a compact yet powerful LED light fixture suitable for hundreds of applications. Available in durable cast aluminum or stainless steel, this robust fixture is suitable for in-ground, ceiling or wall applications – both indoor and outdoor. LED Mini Disc Light makes LED marker lighting affordable for any budget! Now available in round and square options.
NOTE: It is not recommended to install Mini Disc Lights/Scoop in harsh environments (such as limestone, salted areas, coastal environments, etc.) to avoid the risk of corrosion to the body of the fixture.
Mini Disc Light
| Electrical | 12V DC, 20mA, 0.24W |
|
Wiring Options |
Each LED Driver can power up to 200 LED MiniDisc Lights by parallel wiring (“daisy chain”) between fixtures.
NOTE: Use LW-18G-CL2 for all in-wall applications. Use LW-18G-BUR for all burial applications. |
| LED Life | 50,000 hours |
| LED Colors | CW 5400K, WW 2900K, Blue,
Green, Amber, Red |
|
Construction |
Both cover and barrel are die cast aluminum or stainless steel for corrosion protection, strength, weight and consistency of finish |
| Cover Finish | Aluminum, White, Bronze, Black, Stainless Steel |
| Barrel Finish | Aluminum, White, Bronze, Black, Stainless Steel |
| Lens | Frosted Tempered Glass |
| Approvals | cETLus listed and labeled for wet, IC, ceiling, wall and direct burial applications. |

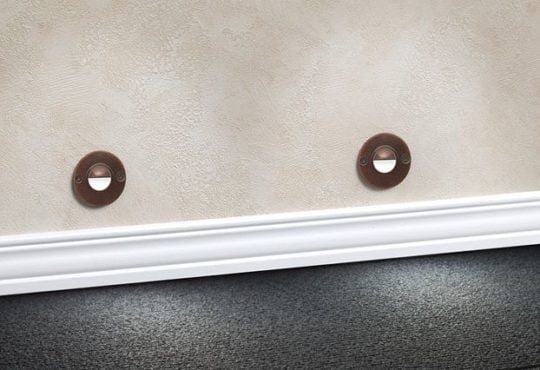

Mini Disc Scoop
| Electrical | 12V DC, 20mA, 0.24W |
| Wiring Options | Each LED Driver can power up to 200 LED MiniDisc Lights by parallel wiring (“daisy chain”) between fixtures.
NOTE: Use LW-18G-CL2 for all in-wall applications. Use LW-18G-BUR for all burial applications. |
| LED Life | 50,000 hours |
| LED Colors | CW 5400K, WW 2900K, Blue, Green, Amber, Red |
| Construction | Both cover and barrel are die cast aluminum or stainless steel for corrosion protection, strength, weight and consistency of finish. |
| Cover Finish | Aluminum, White, Bronze, Black |
| Barrel Finish | Aluminum, White, Bronze, Black |
| Lens | Frosted Tempered Glass |
| Approvals | cETLus listed and labeled for wet, IC, ceiling, wall and direct burial applications. |
LEDMD-CF
CONCRETE FORM
LW-18G-CL2
IN-WALL INSTALLATION WIRE
LW-18G-BUR
BURIAL INSTALLATION WIRE
This product is suitable for the following applications:

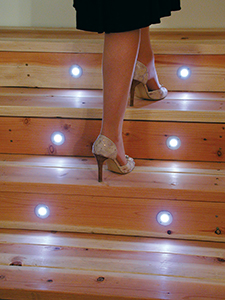

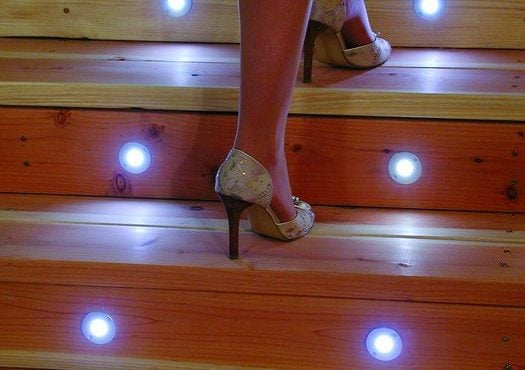

- Steps
- Aisles
- Paths

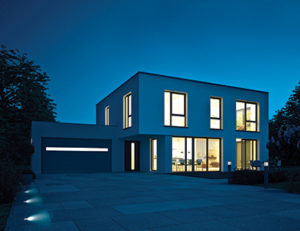

- Driveways
- Direction lighting
- Information lighting
- Decorative lighting
- Merchandising
- Landscape accents
