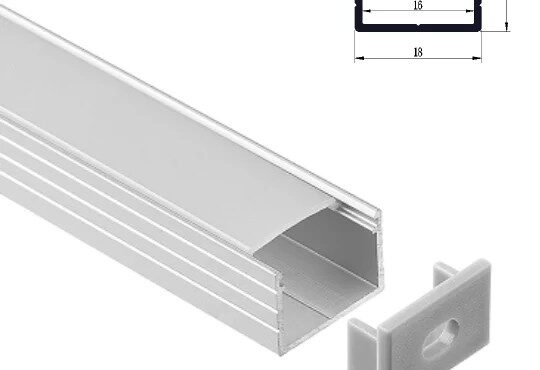

LV-ALP1605

The LV-ALP1605 is a surface-mount aluminum extrusion designed to protect, enhance, and extend the performance of your LED strip light installations. Its increased channel depth helps reduce pixelation—especially with traditional SMD tape—while the included frosted polycarbonate cover diffuses light evenly for a smooth, glare-free effect.

With a 16 mm internal channel, LV-ALP1605 is fully compatible with all ST and SL series tapes as well as most LED products up to 16 mm wide, making it one of the most versatile profiles in our lineup.


Product Codes

  • LV-ALP1605 — 1-meter length
  • LV-ALP1605-2M — 2-meter length

End Caps

  • LV-ALP1605-EC — End caps, 2 per bag
  • LV-ALP1605-EC-WF — End caps with wire feedthrough, 2 per bag

Mounting Clips

  • LV-ALP1605-MC — Mounting clips, 2 per bag

At-a-Glance Specs

  • Mounting: Surface mount
  • Material: Anodized aluminum (Silver finish)
  • Lens: Frosted polycarbonate (included)
  • Inner Channel: 16 mm
  • Outer Dimensions: 18 mm width × 13 mm height
  • Compatible LED Tape: All ST and SL series, plus most 16 mm or narrower
  • Special Feature: Increased depth minimizes pixelation with traditional SMD tape
  • Applications: Under-cabinet lighting, shelving, millwork, display cases, architectural accents (residential, commercial, and retail)
