Xenon Wall Light
Xenon Wall Light comes with an 18 watt xenon lamp. Both the cover and the can of the Xenon Wall Light are constructed of die cast aluminum for corrosion protection and strength. The Xenon Wall Light is suitable for both interior and exterior applications and comes with integral 12 volt transformer and housing for easy installation. Our concrete cap accessory makes concrete pour installations fast and easy. There are three decorative covers to choose from: louver, scoop or prism. Each cover is available in white, black, brushed aluminum or bronze.
Electrical | 120V AC, 18W |
Wiring Options | 120V AC hardwire – can be daisy chained up to 66 fixtures per 15A circuit |
LED Life | 10,000 hours |
Color Temperature | 2750K |
Replacement Lamp | 12V, 18W, product code XTL-BULB |
Cover Finish | Powder Coated White, Bronze, Black, Brushed Aluminum |
Can Finish | Powder Coated White |
Construction | Cover and can cast aluminum |
Lens | Frosted Tempered Glass |
Cover Dimensions |
6 3/8” x 1 1/2” (161.9 x 38.1mm) 6 3/8” x 5/8” (161.9 x 15.87mm) 6 3/8” x 3/4” (161.9 x 19.0mm) |
Scoop | |
Prism | |

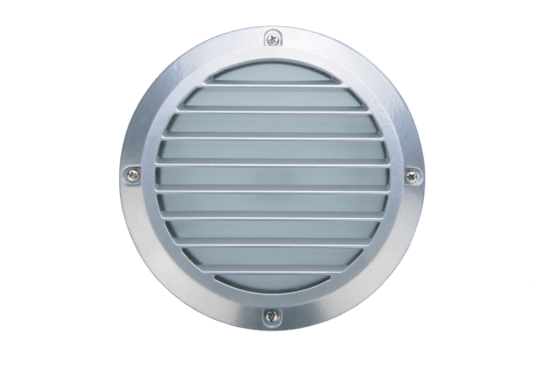

Louver | |
6 1/4” x 3” (159.0 x 76.2mm) 6 1/4” x 3” (159.0 x 76.2mm) 6 1/4” x 3” (159.0 x 76.2mm) |
|
Can Dimensions with surface mounting tabs | |
Scoop | |
Prism | |
Louver | |
4 7/8” x 3” (124.0 x 76.2mm) 4 7/8” x 3” (124.0 x 76.2mm) 4 7/8” x 3” (124.0 x 76.2mm)
|
|
Can Dimensions with surface mounting tabs removed | |
Scoop | |
Prism | |
Louver | |
Approvals | cETLus listed for wall, ceiling, wet and IC locations |

XEN-12-18W
REPLACEMENT 18W XENON BULB

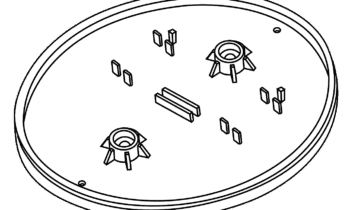

WL-CC
WALL LIGHT CONCRETE CAP
This product is suitable for the following applications:
- Aisle Lighting
- Deck & Patio Lighting
- Landscape Lighting
- Parking Lot Lighting
- Pathway Lighting
- Stairway Lighting
- Wall Lighting
