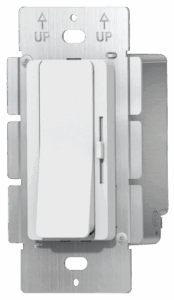

NSL is proud to introduce Dim Drive, the all-in-one low-voltage lighting solution that combines a constant-voltage LED driver and full-range dimmer in one sleek device. Built for electricians, distributors, designers, and homeowners, Dim Drive eliminates compatibility headaches and delivers reliable, flicker-free dimming for 24V LED lighting.
Why Choose Dim Drive?
Dim Drive is purpose-built to make LED lighting installation and control simpler for every stakeholder.
- Two-in-one convenience: Combines a 24V LED driver and dimmer in one device.
- Familiar design: Clean look, similar to Lutron Diva dimmers.
- Quick installation: Fits standard wall boxes, works in multi-gang setups, and trims easily with zero load derating.
- Three-way switching: Control lights from multiple locations.
- Flicker-free dimming: Quiet 16 kHz PWM dimming from 0.3% to 100%.
- Built-in safety: Short-circuit, overload, and over-temperature protection with auto-recovery.
- Better value: Lower cost and improved design compared to Switch-Ex.

Perfect for Any 24V LED Lighting Project
Dim Drive is the go-to solution for low-voltage LED lighting applications, including:
- Under-cabinet kitchen lighting
- Cove and ceiling perimeter lighting
- Toe-kick and stair accent lights
- Mirror and TV backlighting
- Closet, wardrobe, and display case lighting
Pair Dim Drive with NSL’s ST and SL Series LED tape, Neon Flex, Hard Strip, or 24V EStrip for dependable illumination and seamless control.
Technical Specifications
- Input Voltage: 120 VAC
- Output Voltage: 24 VDC
- Models: 60W and 100W
- Efficiency: 91% at full load
- Power Factor: > 0.99
- Operating Temp: –40 °C to +60 °C
- Environment: Rated for dry and damp locations
- Certifications: UL, cUL, FCC, Class P, SELV, RoHS, REACH
Built for Installers
Dim Drive is designed with electricians in mind. It mounts directly into a standard switch box, with an isolation barrier for safe high-/low-voltage separation in multi-gang configurations. A rotatable partition and clear wiring diagram ensure fast, code-friendly installation every time.
The Bottom Line
NSL’s Dim Drive LED dimmer driver delivers the simplest, most cost-effective way to power and dim 24V LED lighting. Whether you’re an electrician, distributor, or designer, Dim Drive is the smart choice for modern, reliable low-voltage lighting.
Coming Soon: Dim Drive+
This fall, NSL will release Dim Drive+, featuring CCT tunability for dynamic white-light control – all in the same compact, installer-friendly design.
Available soon – stay tuned for launch.
