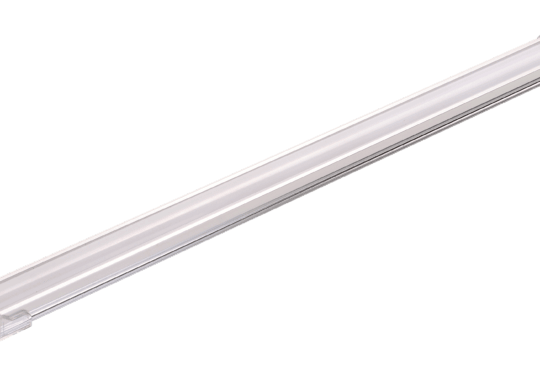

Gen II LED Hard Strip
The Gen II LED Hard Strip presents a versatile lighting solution, featuring a wide 120° beam spread that guarantees expansive and even illumination across various applications.
Notable Attributes of the Gen II LED Hard Strip —
- Efficiency Redefined: This LED strip light incorporates high-efficiency 0.5W Epistar LEDs, ensuring minimal power consumption while delivering exceptional brightness.
- Uniform Light Dispersion: The 120° beam spread guarantees even light distribution, eliminating the presence of harsh/uneven spots.
- Extended Lifespan: With an impressive 50,000-hour lifespan, these LED strip lights are designed for durability, reducing the frequency of replacements and maintenance.
- 24V DC Power: Operating at 24V DC, these LED hard strip lights are not only eco-friendly but also user-friendly, prioritizing safety and peace of mind.
- Custom Fit: Choose from four sizes – 11.8” (300mm), 19.7” (500mm), 39.4” (1000mm), and 47.3” (1200mm) – to ensure the perfect fit for your lighting needs.

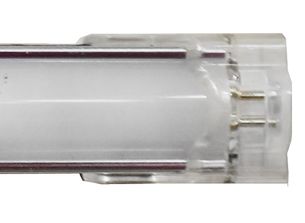

- No-Fuss Setup: The Gen II LED Hard Strip comes with an easy-to-use LED strip light connector, making installation straightforward, saving you time and effort.
- Glare Reduction: A diffused frosted lens has been incorporated to minimize glare, making these strips ideal for tasks that demand focused lighting.
- Adaptable to Various Environments: With a temperature rating spanning from -35°C to 50°C, these LED strips demonstrate adaptability across different environments.
- Assured Warranty: Supported by a 3-year limited warranty, these LED strips provide you with confidence in their durability and reliability.
Want more information about this product?
Please send us your contact information and we will connect you with a knowledgeable product representative.
Size 1 | Size 2 | Size 3 | Size 4 | ||
Product code | LV-HS-PD20-24V-YY-XX | 30 | 50 | 100 | 120 |
Electrical | Input Voltage | 24V DC | |||
Power Consumption | 4W | 7W | 13W | 16W | |
Specs | Colour Temp: Neutral White | 4200K +/- 200K | |||
Colour Temp: Warm White | 3000K +/- 200K | ||||
Lumens (LM): Neutral White | 400 | 664 | 1066 | 1150 | |
Lumens (LM): Warm White | 380 | 621 | 1036 | 1100 | |
Viewing Angle | 120° | ||||
LED | Life Span | 50,000 hours | |||
Qty. per strip | 36 | 60 | 132 | 156 | |
Design | Size | 11.8″ (300mm) | 19.7″ (500mm) | 39.4″ (1000mm) | 47.3″ (1200mm) |
Product Material | Aluminum | ||||
Operating Temperature | -35°C to 50°C | ||||
Mounting | 2 pieces of 0° mounting clips and one end cap | ||||
Warranty | 3 years limited | ||||
Approvals | cETLus for indoor use |

LV-HS-PD20-PF1-XX
SINGLE COLOR POWER FEED, DC PLUG 12" OR 39"

LV-HS-PD20-PF1-HW
SINGLE COLOR 36" POWER FEED, HARD WIRE

LV-HS-PD20-PC1-XX
SINGLE COLOR POWER CONNECTOR 3", 12", OR 39"

LV-HS-PC2-XX
RGB POWER FEED, DC PLUG 12" OR 39"

LV-HS-PF2-HW
RGB 36" POWER FEED, HARD WIRE

LV-HS-PC2-XX
RGB POWER CONNECTOR 3", 12", OR 39"

LC-HS-MC0
MOUNTING CLIPS

LV-HS-MC-30
30° MOUNTING CLIPS

LV-HS-MC45
45° MOUNTING CLIP

LV-HS-MCRT
ROTARY MOUNTING CLIP

LV-HS-EC
END CAP

LV-HS-CN-3DC
CONNECTOR WITH 12" WIRE LEAD AND 3 DC CONNECTOR
Applications of Gen II LED Hard Strip —
-

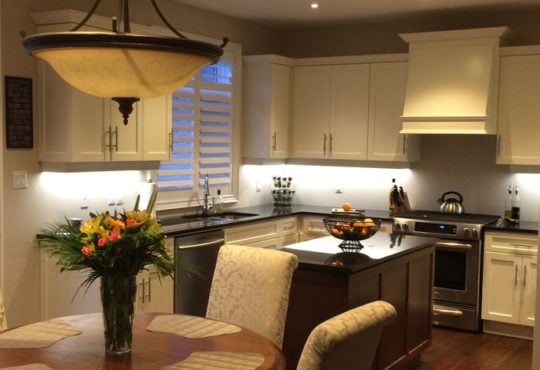

- Under Cabinet Task Lighting:
Gen II LED Hard Strip shines as an excellent choice for those in search of dependable LED light strips for under cabinet illumination.
a) Kitchen Enhancement: In the kitchen, these strips can be effortlessly installed under cabinets, delivering ample light to countertops.
b) Task-Specific Lighting: Whether you’re engaged in vegetable chopping or reading recipes, these LED strips offer focused lighting to enhance your kitchen tasks.
- Under Cabinet Task Lighting:
-

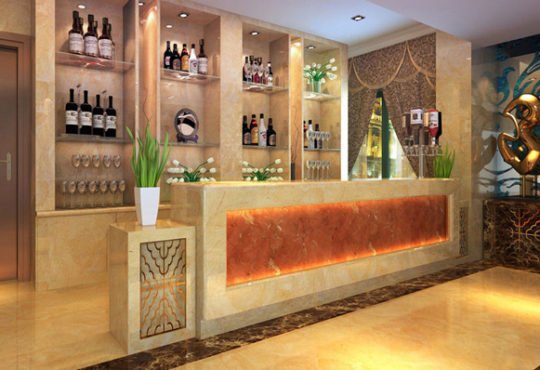

- Merchandise Presentation:
If you own a business, these strips can elevate the presentation of your merchandise, attracting attention and potentially boosting sales.
- Merchandise Presentation:
-
- Cabinet Organization:
Keep your storage spaces efficiently organized and easily accessible with well-lit interiors.
- Cabinet Organization:
-
- Workspace Environment:
In your workspace, these LED strips create a conducive environment for focused work, potentially increasing productivity.
- Workspace Environment:
-
- Interior Decor Enhancement:
Utilize Gen II LED Hard Strip to infuse a touch of elegance into your interiors, fostering a warm and inviting atmosphere.
- Interior Decor Enhancement:
