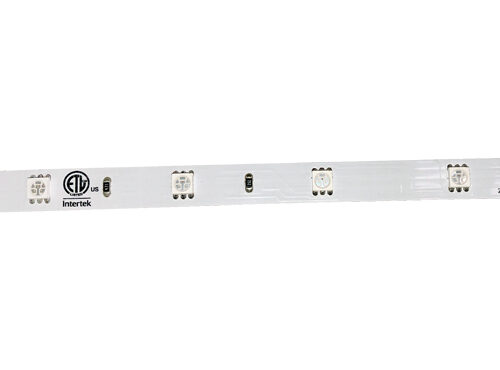

Low Power, RGB Outdoor
Outdoor
RGB
For those exterior applications requiring a dynamic but subtle approach. Suitable for residential, hospitality, commercial and retail.
**Use only LEDDR-24-120W power supplies when controlling RGB LED Strip. Do not use dimmable power supplies for color change applications.
| Product Code | LTP-OD-20-RGB-LP | |
| Electrical | Input Voltage | 24V DC |
| Power Consumption | 2.2W/Ft | |
| Specs | Colour Temperature | RGB |
| Dimmable | Yes | |
| Beam Angle | 120° | |
| LED | Type | High Brightness 5060 SMD LEDs |
| Life Span | 50,000 Hours | |
| Spacing | 32mm | |
| # per foot (304mm) | 9 | |
| Design | Dimensions (Inches) | .39″ W |
| Dimensions (Milimeters) | 10mm W | |
| Max Single Run Length | 40Ft | |
| Custom Cuttable | 6.5″ | |
| Approved Location | Outdoor | |
| Warranty | 6 years | |
| Approvals | cETLus | |
LTP-RGB-001-OD-6FT
RGB POWER FEED OUTDOOR CONNECTOR
LV-FS-MC-004
MOUNTING CLIPS
LV-FS-EC-001
END CAP
LTP-010-S
4 FT PLASTIC MOUNTING CHANNEL
LN-WIFI-CTRL
3 IN 1 LED STRIP CONTROLLER (WiFi+2.4G)
LN-WIFI-RM
4-ZONE RGB+CCT REMOTE
LV-1401
EXTRUSION
LV-ALP007
EXTRUSION
LV-ALP2208
EXTRUSION
LV-ALP2908
EXTRUSION
LV-RD54-2M
EXTRUSION
LV-RD55-2M
EXTRUSION
LV-RD54-1M
EXTRUSION
LV-RD55-1M
EXTRUSION
- Aisle and stairway lighting
- Cabinet and cove lighting
- Back lighting
- Showcase lighting
- Linear decorative lighting
