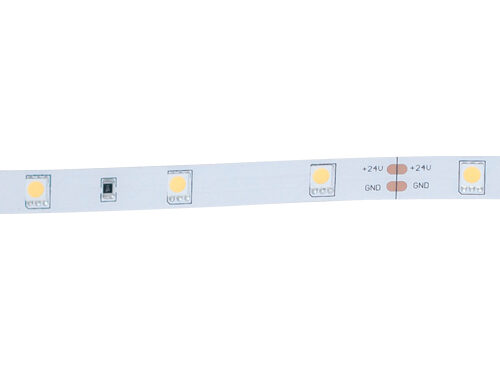

Low Power Indoor
Great choice for under cabinet and coves offering subtle lighting effects.
Product Code | LTP-XX-YY-H90-LP | |
Electrical | Input Voltage | 24V DC |
Power Consumption | 2.2W/Ft | |
Specs | Colour Temperature | 2700K, 3000K, 3500K, 4000K, 6500K |
CRI | 90 | |
Lumen Output | 143 Lumens per ft 2700K | |
145 Lumens per ft 3000K | ||
148 Lumens per ft 3500K | ||
150 Lumens per ft 4000K | ||
165 Lumens per ft 6500K | ||
Efficacy | 65 LPW 2700K, 66 LPW 3000K, 68 LPW 3500K | |
70 LPW 4000K, 75 LPW 6500K | ||
Dimmable | Yes | |
Beam Angle | 120° | |
LED | Type | High Brightness 5060 SMD LEDs |
Life Span | 50,000 Hours | |
Spacing | 32mm | |
# per foot (304mm) | 9 | |
Design | Dimensions (Inches) | .39″ W |
Dimensions (Milimeters) | 10mm W | |
Max Single Run Length | 40Ft | |
Custom Cuttable | 1.3″ (33mm) | |
Approved Location | Indoor | |
Warranty | 6 years | |
Approvals | cETLus |
- LED TAPE LIGHT WARM WHITE 20FT LTP-20-3000K-H90-LP
- LED TAPE LIGHT COOL WHITE 20FT LTP-20-6500K-H90-LP
- CLEAR U CHANNEL TRACK - LTP-010-S
- CORNER SURFACE MOUNTED ALUMINUN EXTRUSION - LV-LB-V3-FR
- EXTRUSION - LV-1401
- EXTRUSION - LV-ALP007
- EXTRUSION - LV-ALP2208
- EXTRUSION - LV-ALP2908
- EXTRUSION - LV-RD54-1M
- EXTRUSION - LV-RD55-1M
LTP-001-6R / LTP-001-12R
POWER CONNECTOR AVAILABLE IN 6FT, 12FT
LTP-002
IN-LINE CONNECTOR FOR SINGLE COLOR INDOOR
LTP-STP-2IN / LTP-STP-6IN / LTP-STP-2 / LTP-STP-12
STEP CORD AVAILABLE IN 2", 6", 2FT, 12FT
LMSII-001
TERMINAL BLOCK WITH JUNCTION BOX
LTP-010-S
4 FT PLASTIC MOUNTING CHANNEL
LTP-003-6DC
DC CONNECTOR FOR LED TAPE LIGHT WITH 6” WIRE AND DC CONNECTOR
LV-SPIR-1CH-LV
PIR MOTION SENSOR, TO BE USED WITH NON-DIMMABLE DRIVERS ONLY
LV-1401
EXTRUSION
LV-ALP007
EXTRUSION
LV-ALP2208
EXTRUSION
LV-ALP2908
EXTRUSION
LV-RD54-2M
EXTRUSION
LV-RD55-2M
EXTRUSION
LV-RD54-1M
EXTRUSION
LV-RD55-1M
EXTRUSION
- Aisle and stairway lighting
- Cabinet and cove lighting
- Back lighting
- Showcase lighting
- Linear decorative lighting
